FLC® PRODUCT LINE
Specialty additives to oil and gas operators, fluid companies and oilfield service providers. Built to solve complex wellbore challenges, minimizing NPT and increasing ultimate recoveries
APPLICATIONS
- Effective and compatible with all common fluid additives and base fluids
- Engineered to work directly in the circulating fluid system
- Effective at controlling fluid invasion at concentrations as low as 4 – 6 lb/bbl
ADVANTAGES
- Drill with mud densities greater than the fracture initiation pressure
- Minimizes downhole losses by preventing induced losses
- Does not contain graphite, asphalt, gilsonite or other black powder based material
FORMATION PERFORMANCE
- Demonstrated to be non-damaging in independent third-party testing for both WBM and OBM
- Low-permeability Middle Eastern chalk, WBM – 98% return perm
- Medium-permeability Latin American sand, WBM – 98% return perm
- Medium-permeability Norwegian sand, Micromax OBM – 98% return perm
ENVIRONMENTAL ADVANTAGE
- Demonstrated to be non-damaging in independent third-party testing for both WBM and OBM
- FLC FINE is environmentally compliant for use worldwide
- PLONOR listed for North Sea use, HMCS Category P, OCNS Group E
- Passes the North America 96-hr LC50 bioassay mysid shrimp
APPLICATIONS
- Effective and compatible with all common fluid additives and base fluids
- Engineered to work directly in the circulating fluid system
- Controls fluid invasion at concentrations as low as 4 – 10 lb/bbl
- Seals fractures up to at least 4,000 psi over pressure in the laboratory; Maintains a seal with overbalance higher than 3,000 psi in the field
ADVANTAGES
- Demonstrated to be non-damaging in independent third-party testing for both WBM and OBM
- Low-permeability Middle Eastern chalk, WBM – 98% return perm
- Medium-permeability Latin American sand, WBM – 98% return perm
- Medium-permeability Norwegian sand, Micromax OBM – 98% return perm
ENVIRONMENTAL ADVANTAGE
- FLC 2000 is environmentally compliant for use worldwide
- PLONOR listed for North Sea use, HMCS Category P, OCNS Group E
- Passes the North America 96-hr LC50 bioassay mysid shrimp and Canadian Microtox
- Does not contain graphite, asphalt, gilsonite or other black powder based material
APPLICATIONS
- Effective and compatible with all common fluid additives and base fluids
- Engineered to work directly in the circulating fluid system
- Effective at controlling fluid invasion at concentrations of 8 – 30 lb/bbl
ADVANTAGES
- Drill with mud densities greater than the fracture initiation pressure
- Does not require specialist solids control equipment
- Increased tolerance to high shear degradation
- Does not contain graphite, asphalt, gilsonite or other black powder based material
FORMATION PERFORMANCE
- Demonstrated to be non-damaging in independent third-party testing for both WBM and OBM
ENVIRONMENTAL ADVANTAGE
- FLC SUPREME is environmentally compliant for use worldwide
- PLONOR listed for North Sea use, HMCS Category P, OCNS Group E
APPLICATIONS
- Effective and compatible with all common fluid additives and base fluids
- Engineered to work directly in the circulating fluid system
- Effective at controlling fluid invasion at concentrations of 8 – 30 lb/bbl
ADVANTAGES
- No adjustments to basic mud formulation
- Does not require specialist solids control equipment
- Physically robust, performance not shear degraded
- Does not contain graphite, asphalt, gilsonite or other black powder based material
FORMATION PERFORMANCE
- Demonstrated to be non-damaging in independent third-party testing for both WBM and OBM
ENVIRONMENTAL ADVANTAGE
- FLC EXTREME is environmentally compliant for use worldwide
- PLONOR listed for North Sea use, HMCS Category P, OCNS Group E
- Passes the North America 96-hr LC50 bioassay mysid shrimp

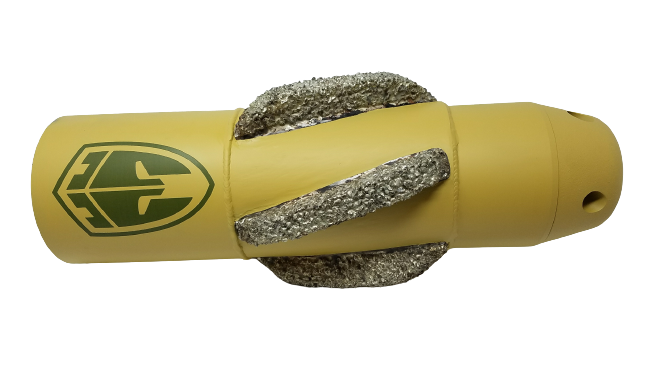

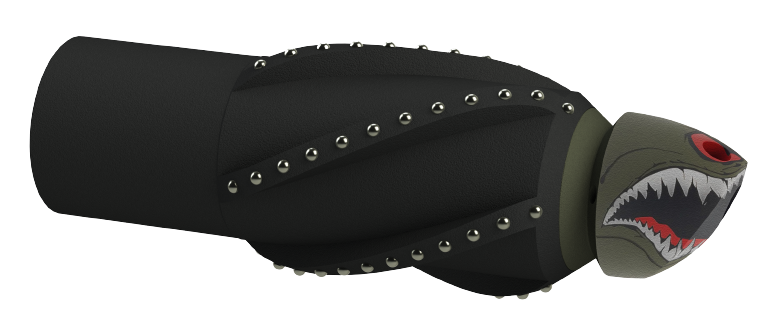

REAMER SHOE
MODEL Guiding Equipment - SHARKNADO™ REAMER SHOE
Description & Application:
Casing guiding equipment is used to help navigate casing through
hole rugosity and minute hole deviations that are present in all
wellbores.
For this purpose, simple designs are more effective in
preventing hang-ups when using casing running tools. We utilize
a variety of guide nose configurations to optimize for each well
profile to assist in reaching planned depth.
Citadel guiding equipment is available in virtually every casing
size, weight, grade, and thread as well as with a variety of
nose configurations.

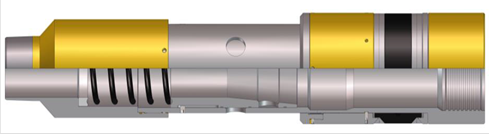

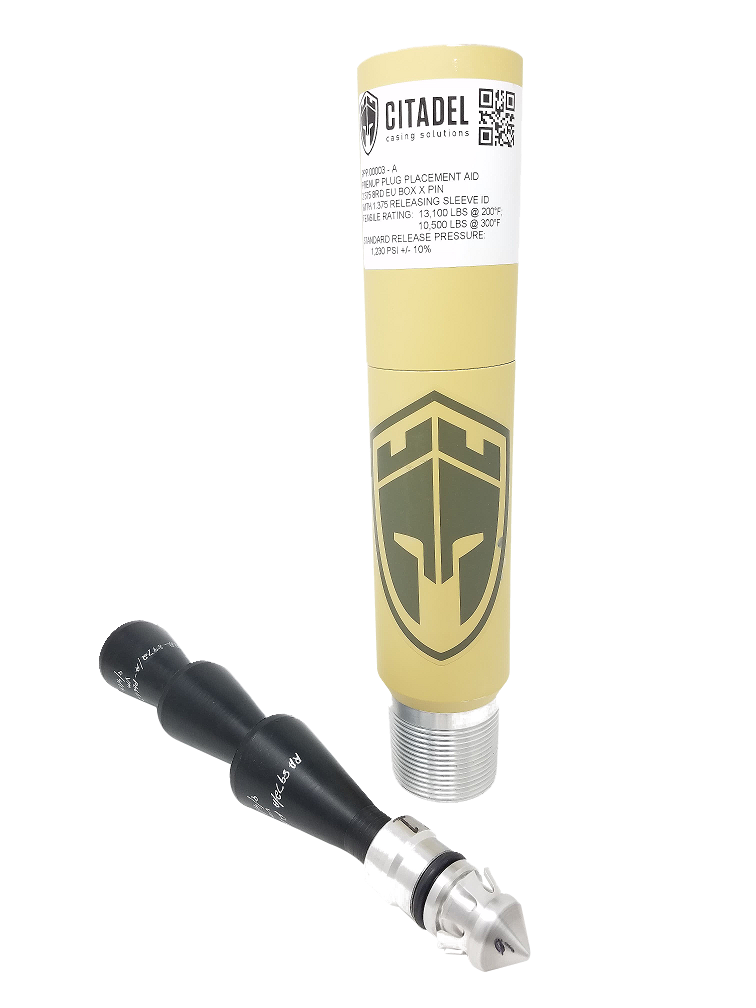

P&A AND KO CEMENT PLUG
MODEL Plug Placement Aids
Description & Application:
Citadel’s Prenup™ plug placement aids are designed to ensure cement plugs
are placed with maximum success rate on the first attempt by eliminating
risks associated with conventional plug setting methods.
Each Prenup™ provides a robust mechanism for ensuring accurate and reliable
placement.
The Prenup™ allows sacrificial tail pipe to be run for the length of the
plug, eliminating the need to pull pipe through partially set up or
completely wet cement when setting plugs. The Prenup™ offers
industry-leading strength, torque ratings and release reliability.
LINER HANGER & COMPLETIONS

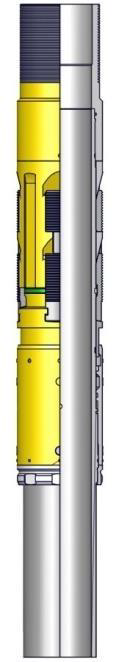

MODEL“BPDR” POCKET SLIP HYDRAULIC ROTATING & “BPDN” NON- ROTATING LINER HANGER
Product No.: BI 261-2U & BI 261-5U
Product No.: BI 261-2U & BI 261-5U
Description & Application:
The BOTIL Model “BPDR” Pocket Slip Hydraulic set Rotating Liner
Hangers can be used to rotate the liner string while running in
and during cementing operations ensuring a more complete cement
bond. Specially designed Recessed type/ Protected type slip
deliver excellent hanging capacity and protected Slip design
eliminates the risk of premature setting. The design is
primarily based on the hydraulic setting of slip segments which
distribute the liner weight evenly on the entire length of the
slips, which is guided in the pocket of the cone. The Hanger
provides large by-pass area in the set position.
The “BPDN” Pocket Slip is a Non-Rotating version of Model
“BPDR” Liner Hanger, with same features and advantages.
The Hydraulic liner hanger may be set before or after
cementing by applying pressure to running-in string.
GRAVEL PACK LINER
MODEL Sand Control Gravel Pack Liner Packer System
Description & Application:
Size: 13-3/8” (61#-68#) x 7” 26# J-55 LTC Pin down
Running it to hang the water screen front of water formation& pumping gravel
pack in the annulus to prevent sand reaching to surface with water.
CASED HOLE WHIPSTOCK

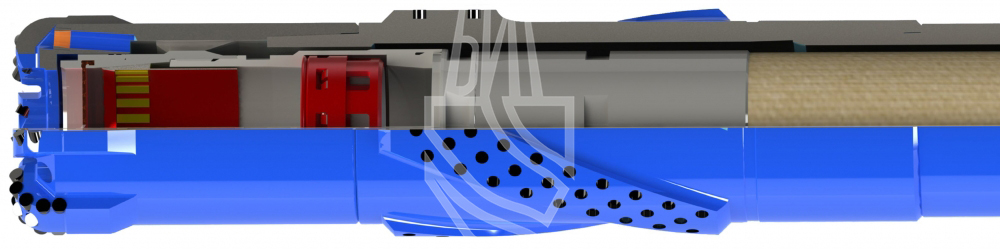

MODEL: Core Barrels
THigh roughness cover of tungsten carbide throughout inside diame- ter provides reliable core catching during brake-off and pulling-out
Product Nomenclature:
SK - 178 / 100
Core barrel - Body outside diameter, mm / Core diameter, mm
Featurs:
- Increased body diameter and reinforced threads increase service life and provide continuous trouble-free operation of core barrel;
- Core tube tapered thread considerably speeds up make up and lay down operations;
- Inner core tube suspension design allows making fast clearance adjustment between core head and inner-tube shoe and, if necessary, change standard heavy series thrust bearing within 10-15 minutes at rig site;

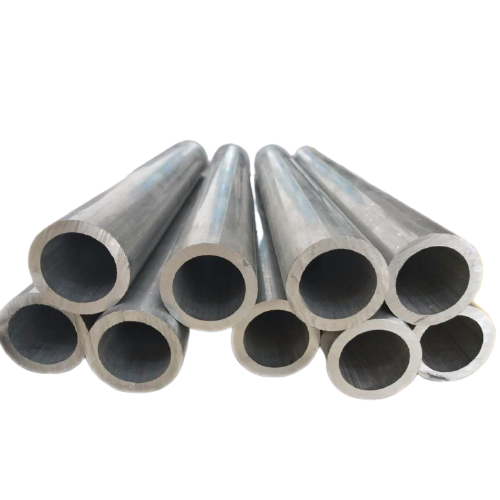

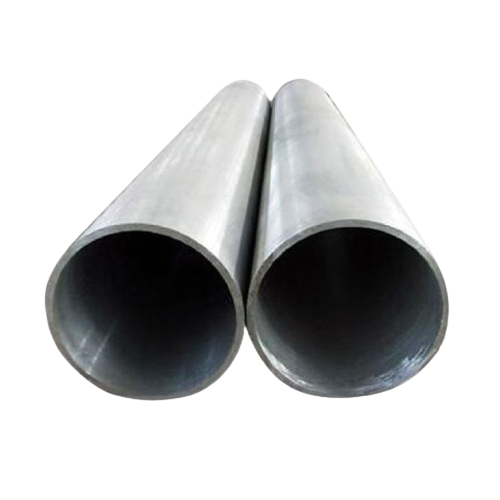

ALUMINUM PIPES
MODEL: 7075 T6 Aluminum Extrusion Hollow Pipe
Description & Application:
7075 T6 aluminum extrusion hollow pipe profile 1.introduction of 7075 T6 aluminum alloy American ALCOA 7075-T6 precision machining / aluminum alloy sheet for mold.
MODEL: Aviation Grade Aluminum Alloy Pipe
Description & Application:
Aluminum alloy pipe with aviation grade can have one or more closed hole, wall thickness, cross section uniform, in line shape or roll shape delivery. Application : It is widely used in automobile, ship, aerospace, aviation, electric appliance, agriculture, electromechanical, household and other.
MODEL: Processing Customized 6061 Aluminum Tube
Description & Application:
Processing customized 6061 aluminum tube.

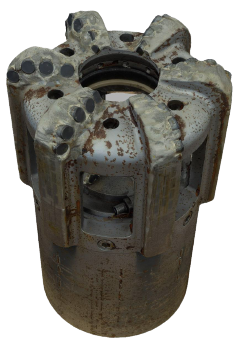

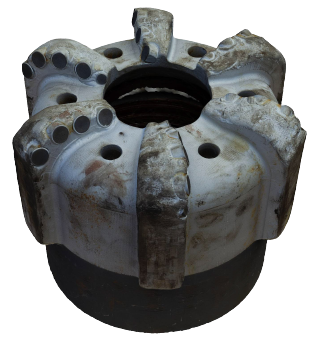

3D Drill bit scanner
MODEL: 3D Drill bit scanner
Description & Application:
Delivering class leading photographic and scanning asset documentation solutions to:
- Improve Efficiency
- Saves Time and Cost
- Enable Right Decisions
